Sunday, December 31, 2023

Mudcracks & Ripple Marks

Back in 1788, Scottish polymath and geologist James Hutton, in his seminal work titled Theory of the Earth, came up with a concept in geology that came to be known as uniformitarianism.

The basic assumption in uniformitarianism is that we can interpret Earth's past history by assuming that the processes we see operating today were essentially the same processes operating in the Earth's past. This concept was later summarized by the memorable phrase "The present is the key to the past." While not always strictly true, in some ways the ancient Earth was different from the modern Earth, it is often a good guiding principle.

As an example, I took a picture in summer 2022 of a place called Duck Pond in the Mohonk Preserve on the Shawangunk Ridge near New Paltz. At the time, there was an issue with the dam impounding the pond and water levels were very low exposing the bed of the pond in places. The summer sun dessicated the mud forming mudcracks.

Here's a picture from the same month and year as the previous shot but taken in Sojourner Truth State Park in Kingston. This is a slab of 420 million year old rock (Late Silurian Rondout Formation) showing what appear to be preserved mudcracks. The concept of uniformitarianism tells us that it's reasonable to assume that this structure in the rocks are, in fact, mudcracks and formed in a similar way to those we find in the modern world.

And, importantly, these mudcracks tells us something about the paleoenvironment that existed here in Ulster County in the geologic past. It's not the whole picture, because mudcracks can form in different environments (a drying up lake bed as above or perhaps a muddy tidal flat on a shoreline) but other features in the rock, such as fossils, might help us figure that out.

Similarly, one can look at ripples in sand, like these in shallow ocean water I took at Ocracoke Island in North Carolina a few years ago.

Then we can look at 420 million year old (also Late Silurian Rondout Formation but hear High Falls, NY) rock and find preserved ripple marks.

Here's another picture of ripple marks from the Mohonk Preserve in the Shawangunks in even older rock (Mid-Ordovician Martinsburg Formation). I didn't take this picture, it's from a 2009 New York State Geological Association Field Guide (although I was on this trip).

Once again, the interpretation is that these ripple marks preserved from hundreds of millions of years ago in rocks formed by the same physical processes that form ripple marks in sand today - back and forth currents of water or wind.

These types of features are called sedimentary structures - essentially fossils of features formed in sediments and then preserved in rock as the sediments lithify. They are invaluable features for attempting to unravel the ancient geological history of an area like the Hudson Valley.

Sunday, December 24, 2023

Yule

Merry Christmas for those who celebrate. While I grew up with Christmas, I don't find it particularly meaningful as an adult (although I still observe it for my wife and stepson). The winter solstice is, in many ways, a far more interesting seasonal event for me. Occurring last Thursday, December 21, at exactly 10:27 pm, it marks the point of maximum tilt of the Northern Hemisphere away from the Sun in our yearly orbit.

Many people, incorrectly, assume that the change in seasons has to do with our distance from the Sun. This is incorrect as the Earth is closest to the Sun (perihelion) on January 2, 2024 (aphelion, the furthest point, is six months later in early July). The seasons are due to the tilt of the Earth's axis as it orbits the Sun. When the Northern Hemisphere is tilted away from the Sun, the sunlight at our mid-latitudes can't reach halfway around the Earth leading to a 9 hour day here in Ulster County, NY. In addition, the Sun is at a lower angle in the sky (about 25º altitude) meaning the incoming solar energy (insolation) is smeared out more than in the summer when the Sun is higher in the sky (around 70º of altitude with 15 hours of daylight in late June). It's the tilt, not the distance that causes the seasons.

There's a reason why almost all ancient cultures (at least in the mid-latitudes) observed the solstices - they are real events with a real impact on our lives. They especially impacted ancient people since solstices and equinoxes, along with the cycle of phases of the Moon, defined all early calendars (and even some religious calendars today).

I always try to mark the winter solstice with a fire in my backyard fire pit after the Sun goes down. Depending on the outside temperature, some friends or family may or may not join me. For me, like my northern European ancestors, the winter solstice is a time to celebrate as it marks the turning point where the days start to get fractionally longer again even though the worst parts of winter are yet to come. In ancient times, it used to be, and still should be in my opinion, the official New Year's Day. January 1 is an artificial construct due to political considerations in the Roman Empire.

The decreasing hours of daylight in the winter really gets to me. I have to always make an effort to get outside and get some sunlight during these shorter days - something difficult to do when I sometimes find myself inside working for most of those daylight hours and the persistently cloudy Hudson Valley winter days.

So, no geology in today's blog post (although talking about the seasons is basic Earth science) but some of my outdoor winter excursions may well be to geologic locales for future posts!

Wednesday, December 20, 2023

Minor Flooding in Ulster County

We got a little bit of rain a couple of days ago on Sunday night into Monday, December 17-18 from a coastal storm. In my area, it seemed to have dumped almost 4 inches of rain in less than 24 hours which led to some flooding in the area.

Here are a couple of graphs from the United States Geological Survey (USGS) stream gaging station on the Rondout Creek at Rosendale near where I teach at SUNY Ulster. You can see the pretty dramatic rise in of the stream from 10.25 feet at 8:00 pm Sunday to 19.5 feet at 3:30 pm Monday – 9.25 feet in 19.5 hours or almost half a foot per hour. That’s why the National Weather Service issued flash flood alerts Sunday.

The next graph shows the discharge of the Rondout in cubic feet per second (ft3/s or cfs). This seemed to peak about a half hour earlier than the height but again we see a fast increase from 700 cfs around 8:00 pm to 15,800 cfs at 3:00 pm the next day. That’s an increase of 22.5 times the volume of water going past the gaging station each second in less than a day.

How does this compare to other flood events on the Rondout? I actually have physical geology students at Ulster look at decades worth of data from this local gaging station (available at https://waterdata.usgs.gov/monitoring-location/01367500) to work out a recurrence interval vs. discharge graph as shown below.

From this graph (blue lines intersecting the red best-fit line to the data), we can tell that a discharge of 18,500 cfs might occur, on average, every 6-7 years (the bottom scale may look odd because it's a semi-log graph). Not a major flooding event, but certainly significant – especially for people who build their homes on river floodplains or along normally-sleepy mountain streams which is common in our area.

One place in Ulster County which always floods (almost yearly) is Route 299 and Springtown Road just west of New Paltz on the other side of the Wallkill River. As seen on Google Maps.

The fields there are a natural floodplain of the Wallkill. That’s a great place to grow corn and other crops but a lousy place to build. The road was, as expected, flooded on Monday, December 18. Lots of pictures shared on Facebook. Someone got a drone show showing minor coverage of Route 299 but Springtown Road completely underwater. By the way, obey the barriers and don’t drive through stuff like this, a woman in Catskill lost her life by driving into floodwaters Monday up there.

What’s neat is that I also saw a picture on Facebook from the Woodbury Historical Society from the 1920s showing the exact same place flooded 100 years ago. That’s looking across the Wallkill from the New Paltz side with the bridge to the left. Notice the faint Skytop Tower on the ridge.

These fields have been flooding as long as there’s been a Wallkill River here (it’s not called a floodplain for nothing!). Flooding is, unfortunately for the people who have to deal with it, a natural part of a river’s life.

Sunday, December 17, 2023

Tail of the Cock Traced on a Rock

On the side of a busy highway near the Ulster County city of Kingston is an series of outcrops quite well known to local geologists. They are along Route 199 just west of the Kingston-Rhinecliff Bridge.

One part of these outcrops is composed of the Esopus Shale Formation and, in this location, it's dipping steeply to the east with a nice glacially-polished surface making for treacherous climbing onto it (especially since you'd slide down into a massive thornbush if you lost your footing).


Looking at this nice polished surface, you'll see some swirling patterns etched into the rock (there's a little iron staining from what looks like the weathering of small inclusions of pyrite - FeS2).

They reminded some of "rooster tails" leading to their common name.

A close-up shows the pattern a little better.

So what are these? Let's start with a little background first.

While paleontology is the study of ancient life (as preserved in fossils), ichnology is a branch of paleontology concerned with trace fossils - fossils that represent some trace of the ancient organism's activity. An example might be a dinosaur trackway (or the eurypterid trackway I wrote about a couple of weeks ago).

Sometimes all we have preserved from an organism is a trace fossil and we're not even sure exactly what species of animal made the trace. These trace fossils may be given taxonomic names and known as ichnospecies.

This swirly fossil in the Esopus Shale (it's found in some other units as well) is such an ichnofossil and was was given the ichnospecies name Zoophycos caudagalli where caudagalli means “tail of the cock” or "rooster tail".

The name Zoophycos was originally used to describe what was believed to be a new genus of algae (1855). It was later recognized that it wasn't algae at all but rather the trace of a marine worm - exactly what species of worm and exactly what this worm was doing is up for interpretation (although we can make some educated guesses).

Underlying the Esopus Shale, and just east of this particular outcrop on Route 199, are a series of limestone formations, chock full of marine invertebrate fossils, which formed in the early Devonian Period ( a hair over 400 million years ago). These limestones formed in the ancient Helderberg Sea - a shallow subtropical sea which once covered Ulster County (and beyond). Why subtropical? It's because this area was still in the Southern Hemisphere and closer to the equator than we are today.

This once clear sea began to get muddy, however, as mountain building started to occur to the east. This was the start of the formation of the Himalayan-scale Acadian Mountains. That's a story for a different day but suffice to say that the start of this mountain building brought a lot of sediments into the Helderberg Sea making it more muddy and leading to the deposition of the Esopus Shale. The previously-abundant marine invertebrates we see in the limestones disappeared as they were mostly filter feeders, straining organic material from the water, and those types of animals don't do well in muddy bottom waters.

Marine worms, however, do just fine in the bottom muds, as they churn through and extract organics from the sediments. While worms, and soft-squishy things in general, rarely preserve as fossils, they can leave traces of their activity. For Zoophycos, it's generally believed that the swirls were feeding traces of the worm (called spreiten) that lived in a vertical shaft, or burrow, beneath the traces.

Zoophycos fossil photo from the Kentucky Geological Survey

Zoophycos fossils have been found throughout the geologic record from 541 million years ago to modern times and even recent studies (Zhang, et al., 2015) acknowledge that we're still not sure of the exact group of marine worm (sipunculida, echiurida, or polychaeta) that may have made these fossils. Whichever one it was, it certainly hit upon a very successful strategy for existing in the muddy seafloor sediments for hundreds of millions of years.

Maybe my students don't feel the same, but I am always humbled when standing on such outcrops, ignoring the modern traffic whizzing by, and looking at fossils like this while imagining the seafloor that once existed here deep in the mists of time.

Sunday, December 10, 2023

Boulder Trains

Earth has experienced a number of ice ages throughout its history - times when continents, especially at high latitudes, were covered with massive ice sheets. The last major ice age peaked around 18,000 years ago when the Hudson Valley was covered with thousands of feet of ice.

As glaciers advance along the landscape, they pick up and entrain particles ranging in size from clay to large boulders and everything in between. As glaciers melt, these sediments are then deposited. This unsorted debris deposited by glaciers is generally called till but a number of different features can form from till by different glacial processes.

A boulder train is one type of glacial deposit. It's basically a linear or fan-shaped deposit of glacial boulders (called glacial erratics) aligned with the past direction of ice flow. One local boulder train (NYSGA 1979 Field Guide) is just past where the Wallkill River flows into the the Rondout Creek between Rosendale and Kingston in Ulster County. In can be seen off Creek Locks Road about 2.7 miles from Rosendale (seen on Google Maps at 41° 51' 56" N, 074° 02' 32" W).

Note the gray rocks scattered across the creek here

The river has carried away all of the smaller material here leaving the larger boulders behind.

Boulders in the Rondout Creek

Not the best picture above, but there were no trespassing signs on the lawn area. One of these days I'll get a drone so I can get nice aerial shots of these types of features.

I think (but not positive) that another such boulder train is located in the middle of the Wallkill River half-way between the villages of New Paltz and Gardiner in Ulster County. It can be seen from Libertyville Road just south of the Ulster County Fairgrounds (or on Google Maps at 41° 43' 13" N, 074° 07' 52" W).

Possible boulder train in the Wallkill River (note the streamlined island)


Pictures of boulders in the Wallkill River

Not the best pictures again, but it was too difficult to get down the riverbank at the time and the other side of the river was private property (again, a drone would have been nice).

The exact processes that lead to the deposition of boulder trains is still poorly understood. Some researchers have traced boulder trains to a nearby cliff and have hypothesized that thin glacial ice and the front edge of the glacier have plucked boulders from the cliff and smeared them out as a boulder train,

It turns out that looking at the topography just north of this boulder train does show a small stream valley and possible source area in the woods. I did not hike in to investigate - maybe sometime this winter if it's not posted.

The point of all this. Just that when geologists claim our area was once covered with glaciers, it's because the landscape all around us preserves evidence of that glaciation if you just know where and how to look for it.

Sunday, December 3, 2023

Kingston Eurypterids

I was recently surprised to read a paper about an interesting fossil found near SUNY Ulster, where I teach. It's a place in Kingston that I've been to before and where I've brought students. The fossil was actually discovered over 100 years ago in 1919 and first described in 1932. The slab containing the fossil was apparently collected at that time and now resides in the paleontology collection at Columbia University. The paper I read was a recent reexamination of the fossil (Braddy, S.J. & Gass, K.C. 2023. A eurypterid trackway from the Middle Ordovician of New York State. Journal of Paleontology 97(1): 158-166).

The fossil, as the paper title states, is a eurypterid trackway. Eurypterids are a type of marine arthropod, commonly called sea scorpions, related to modern horseshoe crabs. They existed from the Ordovician Period of geologic time (~465 million years ago) up until the end of the Permian Period (~250 million years ago). Some 250 species of eurypterids have been described ranging in size from 2 cm up to 2.5 m (over 8 feet!) in length. Eurypterids seem to have lived in areas of shallow brackish and/or fresh water.

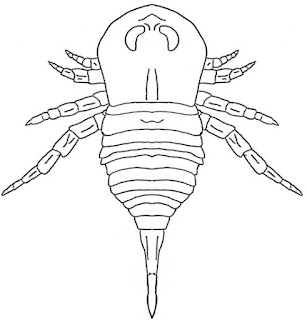

In 1984, Eurypterus remipes (right) was named the official New York State fossil. There are a couple of important localities for eurypterid fossils in the State, called pools, one near Buffalo and one near Herkimer (Lang Quarry near Herkimer has produced some of the best eurypterid fossils in the world). These "pools" are interpreted to be tidal flat areas where bodies or molts (eurypterids molted like other arthropods) washed up and became buried and fossilized.

One interesting thing about eurypterids is that there's fossil evidence that they could crawl out onto land like modern horseshoe crabs. Horseshoe crabs famously do this in places like the Delaware estuary in late spring on nights of the full moon to spawn - I went to see them spawning on Slaughter Beach in Delaware in May, 2022 - an amazing sight (picture below).


As mentioned, this fossil is a trackway, not an actual fossil of a eurypterid. Paleontologists call these ichnofossils or trace fossils as they represent traces of the organism's activity (another example will be discussed in an upcoming post on Zoophycos).

Identifying what species of animal made a trackway may be difficult of even impossible so trackways are sometimes given their own species names (called ichnospecies). Back in 1932, this particular trackway was assigned the ichnospecies Protichnites gallowayi based on the appearance of the tracks (shown below). The tracks were on a slab of rock which also showed molds of mudcracks indicating the animal was walking across a muddy exposed tidal flat.


Eurypterid trackway from Braddy & Gass (2023). Scale bare 5 cm on top, 1 cm on bottom

With the modern reexamination of this trackway, Braddy & Gass (2023) renamed the ichnospecies to Palmichium gallowayi and believe the tracks appear to have been made by a eurypterid, quite possibly Brachyopterus stubblefieldi, a small (8 cm) eurypterid from the Middle Ordovician Period and known from fossils in Wales (a bit closer to us during the Ordovician). This makes this trackway one of the oldest examples of a eurypterid trackway in the world. A drawing of this eurypterid is shown below.


So, where was this trackway found? There's a park in Kingston called Hasbrouck Park. In older times, the hill, rising from the area along the Rondout Creek, was called the Vlightberg. Along the south side of this park are some steep cliffs which is where surface and underground cement mining was taking place over 100 years ago. It was Rosendale Natural Cement which I've written (and spoken) about numerous times. One small quarry area on the side of the cliffs was called Hill Quarry. The trackway was found on the south side of the entrance to the quarry in the Martinsburg Formation - a highly deformed shale and sandstone sequence from the Ordovician Period just below the famous Taconic unconformity with the overlying carbonate cement rocks.

Back in the Ordovician, a bit over 450 million years, ago, a eurypterid crawled up on a muddy tidal flat. What were they doing? Maybe molting. Maybe massing with other eurypterids to mate like the modern horseshoe crabs. Maybe just strolling in the moonlight - under a Moon that was closer to the Earth back then and forming more extensive tidal mud flats with more extreme tidal variations. The water lapping on the edge of the tidal flat would be warm - at the time we were in the Southern Hemisphere but much closer to the equator than we are today. After the eurypterid went about his business, the trackway baked in the sun the next day and the mud cracked. Then, in the next high tide, sand washed over the trackway and mudcracks and preserved them.

That sediment eventually became buried and lithified into sandstone. Then a mountain building event which formed the massive Taconic Mountains folded those sandstones deep underground. They eventually reached the surface again after tens of millions of years of erosion and were covered by a shallow sea which deposited a thick sequence of sediments (the cement rocks and overlying limestones).

We are very fortunate that humble little trackway made one evening hundreds of millions of years ago made it's way down to the present day for us to wonder about!
